Y-ball valve
- Outstanding ball valve design, no blocking
- Resilience of rubber ball up to 76%， sealing, no leakage
- Wear – resistant rubber liners, reliable valve body, prolong the service life of valve 2 times
- Automatic control, one ball valve can automatically open and close the valve
- Without a prepared, reduce investment cost
Outstanding ball valve design of opening and closing, no blocking
Creative opening and closing device control the valve by slurry pushing the ball
Slurry flow driving ball into a pipe orifice and close it; slurry pass by another pipe orifice. So it will not cause blockage.
High resilience ball valve, guarantee sealing
The ball wrapped by Xinhai wear – resistant rubber which can effectively open and close the two valve ports in Y – ball valve.
World advanced rubber liners, prolong the service life of valve 2 times
Xinhai wear – resistant rubber as the liners of Y – ball valve with 128% wear resistance index can protect valve body from the wear of slurry and prolong the service life of valve.
Automatic control system, more flexible and simple
The Y – ball valve relying on the pressure of slurry to change the valve does not need people to control realizing automatic control, simple and flexible.
valve direction changing by slurry pressure, get rid of a prepared valve
Adopting Y- ball valve realizes pipeline setting of two pumps with one valve. Reducing the investment cost by only buying one valve and investing one pipeline.
Product FAQ
Why the phenomenon of ball valve leakage occurred?
The length of levers is not suitable causing the space between spool and valve seat.
Warm tips
Xinhai Y – ball valve working pressure: <=0.7Mpa
Product parameter

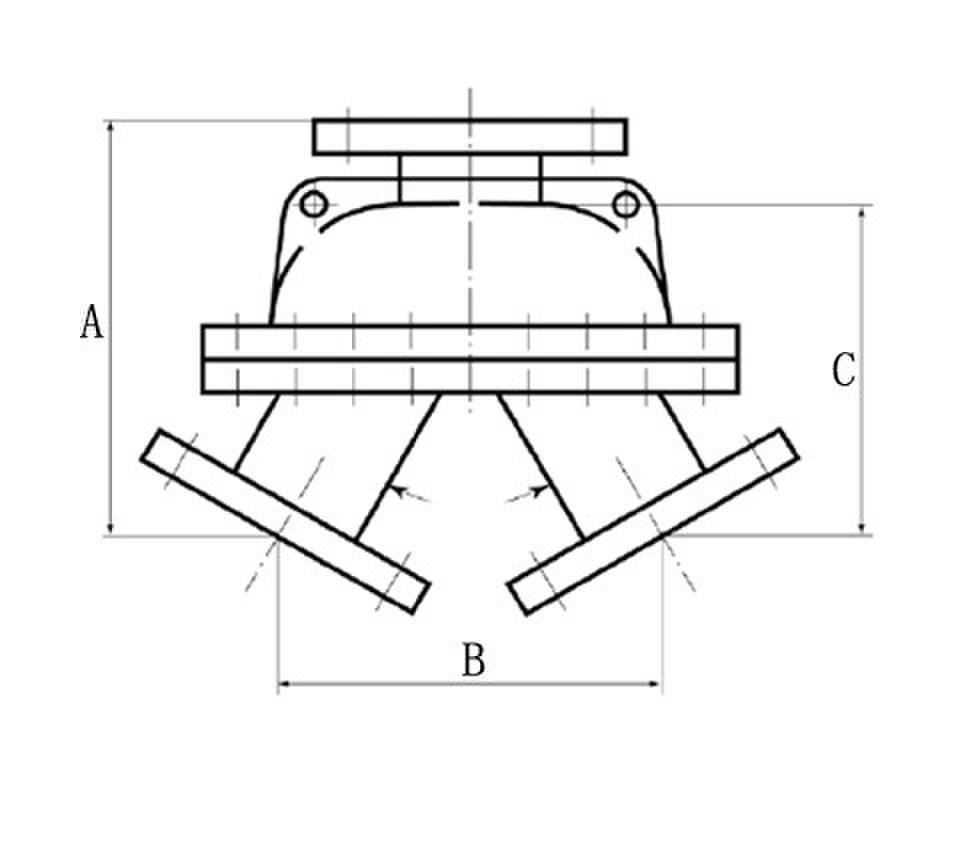

Layout dimension of Y – ball valve
|
Specs (DN) |
A |
B |
C |
Flange dimension |
||
|
Center distance of bolt holes |
Outside diameter of flange |
n-Φd |
||||
|
65 |
247 |
227 |
197 |
145 |
185 |
4-Φ18 |
|
80 |
267 |
250.5 |
217 |
160 |
200 |
8-Φ18 |
|
100 |
308.5 |
296 |
256.5 |
180 |
220 |
8-Φ18 |
|
125 |
352 |
346 |
300 |
210 |
250 |
8-Φ18 |
|
150 |
410 |
400 |
346.5 |
240 |
285 |
8-Φ22 |
|
200 |
477 |
476.5 |
413 |
295 |
340 |
8-Φ22 |
|
250 |
569 |
569 |
493 |
350 |
395 |
12-Φ22 |
|
300 |
656 |
669.5 |
580 |
400 |
445 |
12-Φ22 |
|
350 |
735 |
761 |
659 |
460 |
505 |
16-Φ22 |
|
400 |
833.5 |
863 |
747.5 |
515 |
565 |
12-Φ26 |
|
450 |
922.5 |
952 |
824.5 |
565 |
615 |
20-Φ26 |
|
500 |
1011 |
1054 |
913 |
620 |
670 |
20-Φ26 |
Performance standard
|
Nominal pressure |
0.7Mpa |
|||
|
Test pressure(Mpa) |
Sealing |
1.0 |
Test medium |
water |
|
Intensity |
1.5 |
Water |
||
|
Working pressure |
≤1.0Mpa |
|||
|
Working medium |
Slurry, dreg, tailings and so on |
|||
