Wear-resistant slurry pump

The international leading products, high wear resistance is famous all over the world

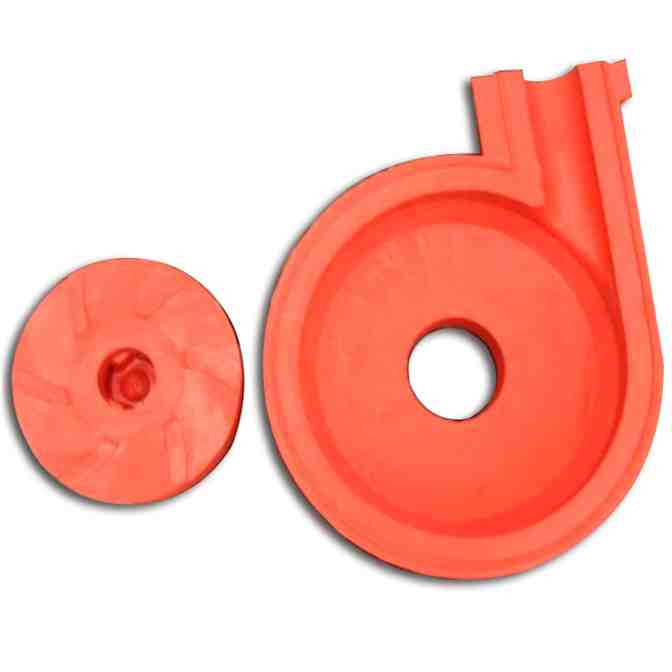

Slurry pump impeller and the casing are lined with Xinhai high wear-resistant rubber ensuring that the pump body is not subject to wear. In the same project, the service life of Xinhai slurry pump is 2 times longer than other metal pump life reaching the international top quality. The rubber liners wear index has reached 128%.



National green, energy-saving products, reduce energy consumption

Rubber impeller with smaller specific gravity is very light. Under the same flow and head, the consumption is less than metal impeller’s by 45%.







The high-speed rotation of the impeller, the overall efficiency is increased by 30%



Internal rubber liners with small specific gravity can effectively improve the impeller speed. Maximum flow rate than other slurry pump can improve the efficiency of the whole 10-20%, overall efficiency increased more than 30%.

Small specific gravity wet parts, convenient maintenance, low noise



Wear-resistant slurry pump protected by wear-resistant rubber which can avoid slurry directly contact with the pump body reducing the noise more than 60%, the failure rate, the number of repair personnel and the operational maintenance cost.

Application of XPA slurry pump

Xinhai wear-resistant slurry pump is suitable for processing the high abrasion slurry

For example:

Metal smelting plant: convey slurry

Sand plant: transporting and conveying sand and gravel, feeding sand and water all types of classification and dewatering plants

Coal preparation plant: classifying, screening and conveying heavy medium, conveying coal pulp

Irrigation systems and dredging: silt removal in dams and river bed, sand classifying

Ceramics and glass factory: porcelain clay and sandstone transportation, feeding hydrocyclone and effluent disposal etc.

Steel works: conveying slurry, rust and corrosive liquid etc.

Note: please specify if applied where oil and chemicals are contained

Product FAQ

Why does not the water come out of the slurry pump?

The motor does not start, pipeline and filter jam, or the pipeline rupture; customers should check and clean timely cleaning.

Product parameter

Specs	Flow (m³/h)	Max head (m)	Rotation speed (rpm)	Max rated power (KW)	Max efficiency (%)	Impeller diameter (mm)	Weigh (kg)	External dimension (mm)
50/50	20-60	38	800-2400	22	51	200	156	725×482×491
80/80	30-100	45	600-2100	45	53	256	326	915×590×595
100/100	60-160	50	600-1600	75	57.5	340	440	999×648×660
150/125	100-260	47	400-1400	110	63	372	608	1280×736×758
200/150	160-450	47	450-1200	132	69	433	736	1313×788×822
250/200	300-900	46	400-1200	250	78	454	1250	1600×812×956
300/250	400-1500	45	300-900	600	73	610	1956	1698×966×1083
